Lighting Up the World with A Chip

At present, HGC mainly provides high-end LED flip chips, vertical chips, high-voltage LED chips and Mini/Micro-LED chips to the market with stable performance and excellent quality.

High Reliability

Stable Dielectric Layer

Rigorous Burn-in Test

Third-party Certification

High Brightness

ODR Reflective Layer

Total Reflection Process

100% Light Extraction

Low Power Consumption

Ohmic Contact

High-traffic Expansion

Integrated Design of Super Thermal Conductivity

Vertical Chip

High light efficiency and high reliability, applied in field of ultraviolet light source and backlight light source.

Application Part Number Typ/Max Drive Current(Ma) Power Intensity(mW) Vf(V) WLD(nm)
1w ALVF26AS 350/500 400-550 3.0-3.4 450-460
3w-10w ALVF47AU 1000/3000 1500-1800 3.0-3.4 447.5-460
3w-10w ALVF63AS 1000/6000 1650-1950 2.8-3.1 450-460

Flip Chip

Flip-chip high-power chip, up to 5W, high-efficiency ODR reflective layer design, high light extraction efficiency, high brightness; packaging without wire bonding, suitable for chip-level packaging, and applied in field of automotive headlights and outdoor lighting.

Application Part Number Typ/Max Drive Current(Ma) Power Intensity(mW) Vf(V) WLD(nm)
1w ALVF26AS 350/500 400-550 3.0-3.4 450-460
3w-10w ALVF47AU 1000/3000 1500-1800 3.0-3.4 447.5-460
3w-10w ALVF63AS 1000/6000 1650-1950 2.8-3.1 450-460

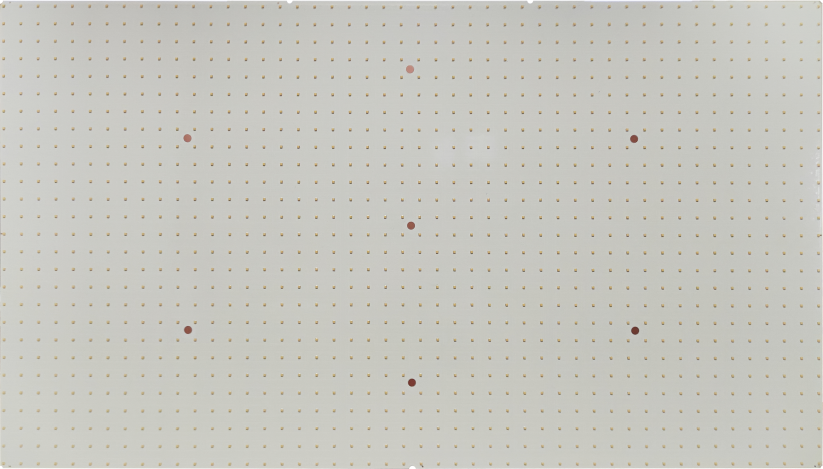

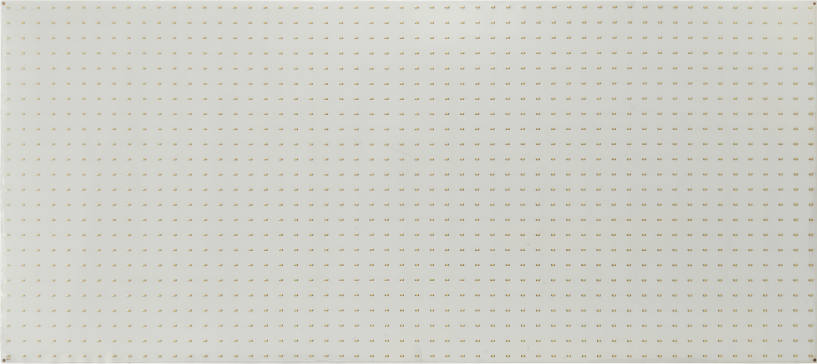

Mini/Micro LED Chip

Flip-chip structure, RGB series can realize full color; chip size is between 25-100μm, applied in filed of self-luminous display, AR/VR, micro-pitch display, projector lamp.

Application Part Number Typ/Max Drive Current(Ma) Power Intensity(mW) Vf(V) WLD(nm)
1w ALVF26AS 350/500 400-550 3.0-3.4 450-460
3w-10w ALVF47AU 1000/3000 1500-1800 3.0-3.4 447.5-460
3w-10w ALVF63AS 1000/6000 1650-1950 2.8-3.1 450-460

Special Light Source Chip

High voltage chip, hermoelectric separation pad, fast heat dissipation and high reliability;
eliminating the need for the multi-chip series connection process in the packaging process, the light shape after packaging is better than the polycrystalline series packaging method, and the UBM design improves the light extraction efficiency after packaging. RC LED, multi-channel red point light source, a single chip integrates a variety of point light source, line light source lighting modes, good collimation, can be used for sights.

Application Part Number Typ/Max Drive Current(Ma) Power Intensity(mW) Vf(V) WLD(nm)
High voltage ALHF57BU 700/1500 3750-4350 8.6-8.9 450-460
RC LED ALM2340 5/10 0.045-0.090 1.7-2.1 640-660
